Class interface the solver. More...

#include <solver.hpp>

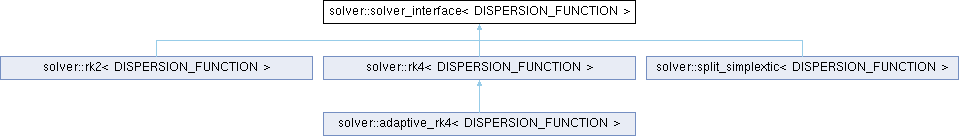

Inheritance diagram for solver::solver_interface< DISPERSION_FUNCTION >:

Public Types
typedef DISPERSION_FUNCTION	dispersion_function
	Type def to retrieve the dispersion function.

typedef DISPERSION_FUNCTION::base	base
	Type def to retrieve the backend base type.

Public Member Functions
	solver_interface (graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math > w, graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math > kx, graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math > ky, graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math > kz, graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math > x, graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math > y, graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math > z, graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math > t, equilibrium::shared< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math > &eq, const std::string &filename="", const size_t num_rays=0, const size_t index=0)
	Construct a new solver_interface with inital conditions.

	~solver_interface ()
	Destructor.

virtual graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	init (graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math > x, const typename DISPERSION_FUNCTION::base tolarance=1.0E-30, const size_t max_iterations=1000) final
	Method to initalize the rays.

virtual graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	init () final
	Method to initalize the rays.

virtual void	compile ()
	Compile the solver function.

void	sync_device ()
	Syncronize results from host to gpu.

void	sync_host ()
	Syncronize results from gpu to host.

void	step ()
	Method to step the rays.

DISPERSION_FUNCTION::base	check_residule (const size_t index)
	Check the residule.

void	print (const size_t index)
	Print out the results.

void	write_step ()
	Write result step.

void	print_dispersion ()
	Print out the latex expression for the dispersion relation.

void	print_dkxdt ()
	Print out the latex expression for the dkxdt.

void	print_dkydt ()
	Print out the latex expression for the dkydt.

void	print_dkzdt ()
	Print out the latex expression for the dkzdt.

void	print_dxdt ()
	Print out the latex expression for the dxdt.

void	print_dydt ()
	Print out the latex expression for the dydt.

void	print_dzdt ()
	Print out the latex expression for the dzdt.

void	print_residule ()
	Print out the latex expression for the residule.

void	print_x_next ()
	Print out the latex expression for the x_next.

void	print_y_next ()
	Print out the latex expression for the y_next.

void	print_z_next ()
	Print out the latex expression for the z_next.

void	print_kx_next ()
	Print out the latex expression for the kx_next.

void	print_ky_next ()
	Print out the latex expression for the ky_next.

void	print_kz_next ()
	Print out the latex expression for the kz_next.

Static Public Attributes
static constexpr bool	safe_math = DISPERSION_FUNCTION::safe_math
	Retrieve template parameter of safe math.

Protected Attributes
graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	w
	w variable.

graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	kx
	kx variable.

graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	ky
	ky variable.

graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	kz
	kz variable.

graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	x
	x variable.

graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	y
	y variable.

graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	z
	z variable.

graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	t
	t variable.

dispersion::dispersion_interface< DISPERSION_FUNCTION >	D
	Dispersion function interface.

graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	kx_next
	Next kx value.

graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	ky_next
	Next ky value.

graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	kz_next
	Next kz value.

graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	x_next
	Next x value.

graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	y_next
	Next y value.

graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	z_next
	Next z value.

graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	t_next
	Next t value.

graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	residule
	Residule.

workflow::manager< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	work
	Workflow manager.

const size_t	index
	Concurrent index.

output::result_file	file
	Output file.

output::data_set< typename DISPERSION_FUNCTION::base >	dataset
	Output dataset.

std::thread	sync
	Async thread to write data files.

Detailed Description

template<dispersion::function DISPERSION_FUNCTION>
class solver::solver_interface< DISPERSION_FUNCTION >

Class interface the solver.

Template Parameters

DISPERSION_FUNCTION Class of dispersion function to use.

Constructor & Destructor Documentation

◆ solver_interface()

template<dispersion::function DISPERSION_FUNCTION>

solver::solver_interface< DISPERSION_FUNCTION >::solver_interface	(	graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	w,
		graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	kx,
		graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	ky,
		graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	kz,
		graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	x,
		graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	y,
		graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	z,
		graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	t,
		equilibrium::shared< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math > &	eq,
		const std::string &	filename = `""`,
		const size_t	num_rays = `0`,
		const size_t	index = `0`
	)

inline

Construct a new solver_interface with inital conditions.

Parameters

[in]	w	Inital w.
[in]	kx	Inital kx.
[in]	ky	Inital ky.
[in]	kz	Inital kz.
[in]	x	Inital x.
[in]	y	Inital y.
[in]	z	Inital z.
[in]	t	Inital t.
[in]	eq	The plasma equilibrium.
[in]	filename	Result filename, empty names will be blank.
[in]	num_rays	Number of rays to write.
[in]	index	Concurrent index.

Member Function Documentation

◆ check_residule()

template<dispersion::function DISPERSION_FUNCTION>

DISPERSION_FUNCTION::base solver::solver_interface< DISPERSION_FUNCTION >::check_residule ( const size_t index )

inline

Check the residule.

Parameters

[in] index Ray index to check residule for.

Returns: The value of the residule at the index.

◆ compile()

template<dispersion::function DISPERSION_FUNCTION>

virtual void solver::solver_interface< DISPERSION_FUNCTION >::compile ( )

inlinevirtual

Compile the solver function.

Reimplemented in solver::adaptive_rk4< DISPERSION_FUNCTION >.

◆ init() [1/2]

template<dispersion::function DISPERSION_FUNCTION>

virtual graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math > solver::solver_interface< DISPERSION_FUNCTION >::init ( )

inlinefinalvirtual

Method to initalize the rays.

Returns: The residule graph.

◆ init() [2/2]

template<dispersion::function DISPERSION_FUNCTION>

virtual graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math > solver::solver_interface< DISPERSION_FUNCTION >::init	(	graph::shared_leaf< typename DISPERSION_FUNCTION::base, DISPERSION_FUNCTION::safe_math >	x,
		const typename DISPERSION_FUNCTION::base	tolarance = `1.0E-30`,
		const size_t	max_iterations = `1000`
	)

inlinefinalvirtual

Method to initalize the rays.

Parameters

[in,out]	x	Variable reference to update.
[in]	tolarance	Tolarance to solve to dispersion function to.
[in]	max_iterations	Maximum number of iterations to run.

Returns: The residule graph.

◆ print()

template<dispersion::function DISPERSION_FUNCTION>

void solver::solver_interface< DISPERSION_FUNCTION >::print ( const size_t index )

inline

Print out the results.

Parameters

[in] index Ray index to print results of.

The documentation for this class was generated from the following file:

graph_framework/solver.hpp
