graph::leaf_node< T, SAFE_MATH > Class Template Reference

Class representing a node leaf. More...

#include <node.hpp>

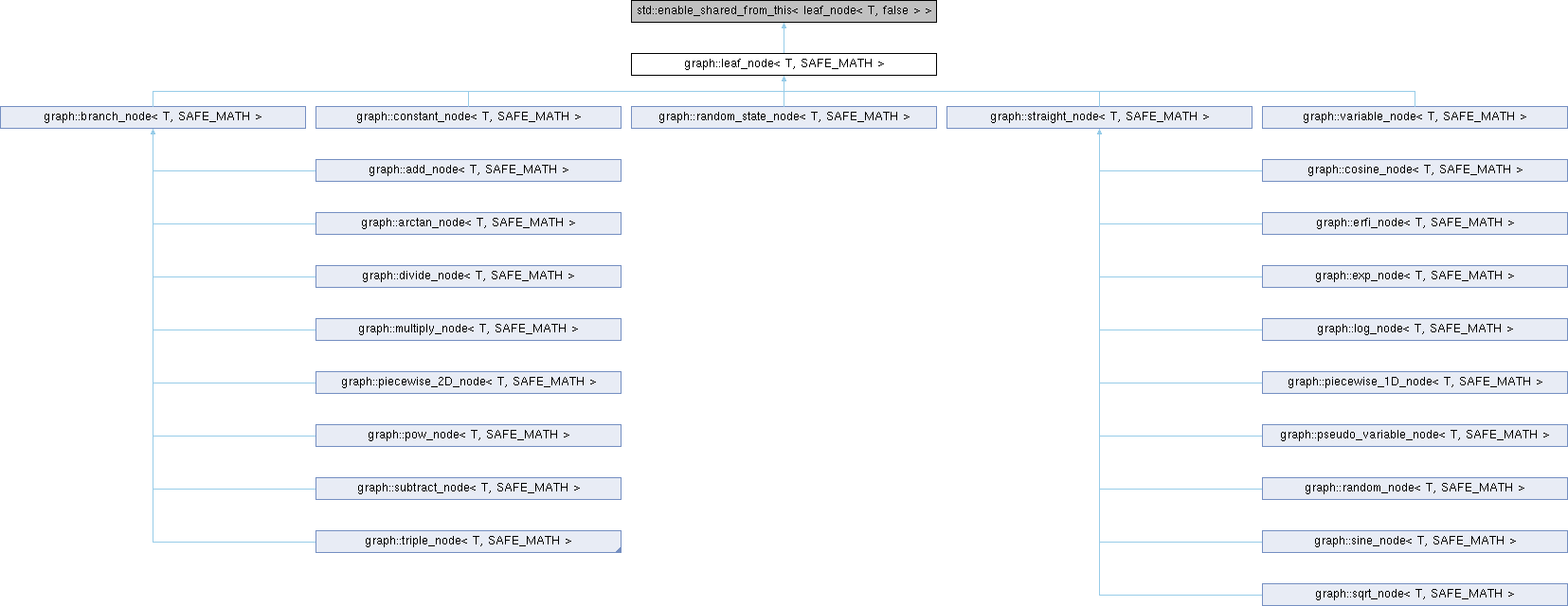

Inheritance diagram for graph::leaf_node< T, SAFE_MATH >:

Classes
struct	caches_t
	Data structure to contain the two caches. More...

Public Types
typedef T	base
	Type def to retrieve the backend type.

Public Member Functions
	leaf_node (const std::string s, const size_t count, const bool pseudo)
	Construct a basic node.
virtual	~leaf_node ()
	Destructor.
virtual backend::buffer< T >	evaluate ()=0
	Evaluate method.
virtual std::shared_ptr< leaf_node >	reduce ()=0
	Reduction method.
virtual std::shared_ptr< leaf_node< T, SAFE_MATH > >	df (std::shared_ptr< leaf_node< T, SAFE_MATH > > x)=0
	Transform node to derivative.
virtual void	compile_preamble (std::ostringstream &stream, jit::register_map &registers, jit::visiter_map &visited, jit::register_usage &usage, jit::texture1d_list &textures1d, jit::texture2d_list &textures2d, int &avail_const_mem)
	Compile preamble.
virtual std::shared_ptr< leaf_node< T, SAFE_MATH > >	compile (std::ostringstream &stream, jit::register_map &registers, jit::register_map &indices, const jit::register_usage &usage)=0
	Compile the node.
virtual bool	is_match (std::shared_ptr< leaf_node< T, SAFE_MATH > > x)
	Querey if the nodes match.
bool	is_power_base_match (std::shared_ptr< leaf_node< T, SAFE_MATH > > x)
	Check if the base of the powers match.
virtual void	set (const T d)
	Set the value of variable data.
virtual void	set (const size_t index, const T d)
	Set the value of variable data.
virtual void	set (const std::vector< T > &d)
	Set the value of variable data.
virtual void	set (const backend::buffer< T > &d)
	Set the value of variable data.
virtual void	to_latex () const =0
	Convert the node to latex.
virtual std::shared_ptr< leaf_node< T, SAFE_MATH > >	to_vizgraph (std::stringstream &stream, jit::register_map &registers)=0
	Convert the node to vizgraph.
virtual bool	is_constant () const
	Test if node is a constant.
virtual bool	has_constant_zero () const
	Test the constant node has a zero.
bool	is_normal ()
	Test if the result is normal.
virtual bool	is_all_variables () const =0
	Test if all the subnodes terminate in variables.
virtual bool	is_power_like () const
	Test if the node acts like a power of variable.
virtual std::shared_ptr< leaf_node< T, SAFE_MATH > >	get_power_base ()
	Get the base of a power.
virtual std::shared_ptr< leaf_node< T, SAFE_MATH > >	get_power_exponent () const =0
	Get the exponent of a power.
size_t	get_hash () const
	Get the hash for the node.
size_t	get_complexity () const
	Get the number of nodes in the subgraph.
virtual bool	has_pseudo () const
	Query if the node contains pseudo variables.
virtual std::shared_ptr< leaf_node< T, SAFE_MATH > >	remove_pseudo ()
	Remove pseudo variable nodes.
virtual void	endline (std::ostringstream &stream, const jit::register_usage &usage) const final
	End a line in the kernel source.

Static Public Attributes
static thread_local caches_t	caches
	A per thread instance of the cache structure.

Protected Attributes
const size_t	hash
	Hash for node.
const size_t	complexity
	Graph complexity.
std::map< size_t, std::shared_ptr< leaf_node< T, SAFE_MATH > > >	df_cache
	Cache derivative terms.
const bool	contains_pseudo
	Node contains pseudo variables.

Detailed Description

template<jit::float_scalar T, bool SAFE_MATH = false>
class graph::leaf_node< T, SAFE_MATH >

Class representing a node leaf.

Template Parameters

T	Base type of the calculation.
SAFE_MATH	Use Safe Math operations.

Constructor & Destructor Documentation

leaf_node()

template<jit::float_scalar T, bool SAFE_MATH = false>

graph::leaf_node< T, SAFE_MATH >::leaf_node ( const std::string  s, const size_t  count, const bool  pseudo  )

inline

Construct a basic node.

Parameters

[in]	s	Node string to hash.
[in]	count	Number of nodes in the subgraph.
[in]	pseudo	Node contains pseudo variable.

Member Function Documentation

compile()

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual std::shared_ptr< leaf_node< T, SAFE_MATH > > graph::leaf_node< T, SAFE_MATH >::compile ( std::ostringstream &  stream, jit::register_map &  registers, jit::register_map &  indices, const jit::register_usage &  usage  )

pure virtual

Compile the node.

Parameters

[in,out]	stream	String buffer stream.
[in,out]	registers	List of defined registers.
[in,out]	indices	List of defined indices.
[in]	usage	List of register usage count.

Returns

The current node.

Implemented in graph::add_node< T, SAFE_MATH >, graph::subtract_node< T, SAFE_MATH >, graph::multiply_node< T, SAFE_MATH >, graph::divide_node< T, SAFE_MATH >, graph::fma_node< T, SAFE_MATH >, graph::sqrt_node< T, SAFE_MATH >, graph::exp_node< T, SAFE_MATH >, graph::log_node< T, SAFE_MATH >, graph::pow_node< T, SAFE_MATH >, graph::erfi_node< T, SAFE_MATH >, graph::constant_node< T, SAFE_MATH >, graph::straight_node< T, SAFE_MATH >, graph::straight_node< T, false >, graph::variable_node< T, SAFE_MATH >, graph::piecewise_1D_node< T, SAFE_MATH >, graph::piecewise_2D_node< T, SAFE_MATH >, graph::random_state_node< T, SAFE_MATH >, graph::random_node< T, SAFE_MATH >, graph::sine_node< T, SAFE_MATH >, graph::cosine_node< T, SAFE_MATH >, and graph::arctan_node< T, SAFE_MATH >.

compile_preamble()

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual void graph::leaf_node< T, SAFE_MATH >::compile_preamble ( std::ostringstream &  stream, jit::register_map &  registers, jit::visiter_map &  visited, jit::register_usage &  usage, jit::texture1d_list &  textures1d, jit::texture2d_list &  textures2d, int &  avail_const_mem  )

inlinevirtual

Compile preamble.

Some nodes require additions to the preamble however most don't so define a generic method that does nothing.

Parameters

[in,out]	stream	String buffer stream.
[in,out]	registers	List of defined registers.
[in,out]	visited	List of visited nodes.
[in,out]	usage	List of register usage count.
[in,out]	textures1d	List of 1D textures.
[in,out]	textures2d	List of 2D textures.
[in,out]	avail_const_mem	Available constant memory.

Reimplemented in graph::straight_node< T, SAFE_MATH >, graph::straight_node< T, false >, graph::branch_node< T, SAFE_MATH >, graph::branch_node< T, false >, graph::branch_node< T, SAFE_MATH >, graph::triple_node< T, SAFE_MATH >, graph::triple_node< T, false >, graph::variable_node< T, SAFE_MATH >, graph::piecewise_1D_node< T, SAFE_MATH >, graph::piecewise_2D_node< T, SAFE_MATH >, graph::random_state_node< T, SAFE_MATH >, and graph::random_node< T, SAFE_MATH >.

df()

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual std::shared_ptr< leaf_node< T, SAFE_MATH > > graph::leaf_node< T, SAFE_MATH >::df ( std::shared_ptr< leaf_node< T, SAFE_MATH > >  x )

pure virtual

Transform node to derivative.

Parameters

[in]

x

The variable to take the derivative to.

Returns

The derivative of the node.

endline()

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual void graph::leaf_node< T, SAFE_MATH >::endline ( std::ostringstream &  stream, const jit::register_usage &  usage  ) const

inlinefinalvirtual

End a line in the kernel source.

Parameters

[in,out]	stream	String buffer stream.
[in]	usage	List of register usage count.

evaluate()

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual backend::buffer< T > graph::leaf_node< T, SAFE_MATH >::evaluate ( )

pure virtual

Evaluate method.

Returns

The evaluated value of the node.

Implemented in graph::add_node< T, SAFE_MATH >, graph::subtract_node< T, SAFE_MATH >, graph::multiply_node< T, SAFE_MATH >, graph::divide_node< T, SAFE_MATH >, graph::fma_node< T, SAFE_MATH >, graph::sqrt_node< T, SAFE_MATH >, graph::exp_node< T, SAFE_MATH >, graph::log_node< T, SAFE_MATH >, graph::pow_node< T, SAFE_MATH >, graph::erfi_node< T, SAFE_MATH >, graph::constant_node< T, SAFE_MATH >, graph::straight_node< T, SAFE_MATH >, graph::straight_node< T, false >, graph::variable_node< T, SAFE_MATH >, graph::piecewise_1D_node< T, SAFE_MATH >, graph::piecewise_2D_node< T, SAFE_MATH >, graph::random_state_node< T, SAFE_MATH >, graph::random_node< T, SAFE_MATH >, graph::sine_node< T, SAFE_MATH >, graph::cosine_node< T, SAFE_MATH >, and graph::arctan_node< T, SAFE_MATH >.

get_complexity()

template<jit::float_scalar T, bool SAFE_MATH = false>

size_t graph::leaf_node< T, SAFE_MATH >::get_complexity ( ) const

inline

Get the number of nodes in the subgraph.

Returns

The complexity count.

get_hash()

template<jit::float_scalar T, bool SAFE_MATH = false>

size_t graph::leaf_node< T, SAFE_MATH >::get_hash ( ) const

inline

Get the hash for the node.

Returns

The hash for the current node.

get_power_base()

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual std::shared_ptr< leaf_node< T, SAFE_MATH > > graph::leaf_node< T, SAFE_MATH >::get_power_base ( )

inlinevirtual

Get the base of a power.

Most node can be treated as x^1 so just return this node.

Returns

The base of a power like node.

Reimplemented in graph::sqrt_node< T, SAFE_MATH >, graph::pow_node< T, SAFE_MATH >, graph::constant_node< T, SAFE_MATH >, graph::variable_node< T, SAFE_MATH >, graph::pseudo_variable_node< T, SAFE_MATH >, graph::piecewise_1D_node< T, SAFE_MATH >, and graph::piecewise_2D_node< T, SAFE_MATH >.

get_power_exponent()

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual std::shared_ptr< leaf_node< T, SAFE_MATH > > graph::leaf_node< T, SAFE_MATH >::get_power_exponent ( ) const

pure virtual

Get the exponent of a power.

Most node can be treated as x^1 so just return one for those nodes but we need todo that manually in the derived classes.

Returns

The exponent of a power like node.

Implemented in graph::sqrt_node< T, SAFE_MATH >, graph::pow_node< T, SAFE_MATH >, graph::constant_node< T, SAFE_MATH >, graph::straight_node< T, SAFE_MATH >, graph::straight_node< T, false >, graph::branch_node< T, SAFE_MATH >, graph::branch_node< T, false >, graph::branch_node< T, SAFE_MATH >, graph::variable_node< T, SAFE_MATH >, graph::pseudo_variable_node< T, SAFE_MATH >, graph::piecewise_1D_node< T, SAFE_MATH >, graph::piecewise_2D_node< T, SAFE_MATH >, graph::random_state_node< T, SAFE_MATH >, and graph::random_node< T, SAFE_MATH >.

has_constant_zero()

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual bool graph::leaf_node< T, SAFE_MATH >::has_constant_zero ( ) const

inlinevirtual

Test the constant node has a zero.

Returns

True the node has a zero constant value.

Reimplemented in graph::constant_node< T, SAFE_MATH >, graph::piecewise_1D_node< T, SAFE_MATH >, and graph::piecewise_2D_node< T, SAFE_MATH >.

has_pseudo()

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual bool graph::leaf_node< T, SAFE_MATH >::has_pseudo ( ) const

inlinevirtual

Query if the node contains pseudo variables.

Returns

True if the node contains pseudo variables.

Reimplemented in graph::pseudo_variable_node< T, SAFE_MATH >.

is_all_variables()

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual bool graph::leaf_node< T, SAFE_MATH >::is_all_variables ( ) const

pure virtual

Test if all the subnodes terminate in variables.

Returns

True if all the subnodes terminate in variables.

Implemented in graph::pow_node< T, SAFE_MATH >, graph::constant_node< T, SAFE_MATH >, graph::straight_node< T, SAFE_MATH >, graph::straight_node< T, false >, graph::branch_node< T, SAFE_MATH >, graph::branch_node< T, false >, graph::branch_node< T, SAFE_MATH >, graph::triple_node< T, SAFE_MATH >, graph::triple_node< T, false >, graph::variable_node< T, SAFE_MATH >, graph::pseudo_variable_node< T, SAFE_MATH >, graph::piecewise_1D_node< T, SAFE_MATH >, graph::piecewise_2D_node< T, SAFE_MATH >, graph::random_state_node< T, SAFE_MATH >, and graph::random_node< T, SAFE_MATH >.

is_constant()

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual bool graph::leaf_node< T, SAFE_MATH >::is_constant ( ) const

inlinevirtual

Test if node is a constant.

Returns

True if the node is like a constant.

Reimplemented in graph::constant_node< T, SAFE_MATH >, graph::piecewise_1D_node< T, SAFE_MATH >, and graph::piecewise_2D_node< T, SAFE_MATH >.

is_match()

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual bool graph::leaf_node< T, SAFE_MATH >::is_match ( std::shared_ptr< leaf_node< T, SAFE_MATH > >  x )

inlinevirtual

Querey if the nodes match.

Parameters

[in]

x

Other graph to check if it is a match.

Returns

True if the nodes are a match.

is_normal()

template<jit::float_scalar T, bool SAFE_MATH = false>

bool graph::leaf_node< T, SAFE_MATH >::is_normal ( )

inline

Test if the result is normal.

Returns

True if the node is normal.

is_power_base_match()

template<jit::float_scalar T, bool SAFE_MATH = false>

bool graph::leaf_node< T, SAFE_MATH >::is_power_base_match ( std::shared_ptr< leaf_node< T, SAFE_MATH > >  x )

inline

Check if the base of the powers match.

Parameters

[in]

x

Other graph to check if the bases match.

Returns

True if the powers of the nodes match.

is_power_like()

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual bool graph::leaf_node< T, SAFE_MATH >::is_power_like ( ) const

inlinevirtual

Test if the node acts like a power of variable.

Most nodes are not so default to false.

Returns

True the node is power like and false otherwise.

Reimplemented in graph::sqrt_node< T, SAFE_MATH >, graph::pow_node< T, SAFE_MATH >, graph::constant_node< T, SAFE_MATH >, graph::variable_node< T, SAFE_MATH >, graph::pseudo_variable_node< T, SAFE_MATH >, graph::piecewise_1D_node< T, SAFE_MATH >, and graph::piecewise_2D_node< T, SAFE_MATH >.

reduce()

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual std::shared_ptr< leaf_node > graph::leaf_node< T, SAFE_MATH >::reduce ( )

pure virtual

Reduction method.

For basic nodes, there's nothing to reduce.

Returns

A reduced representation of the node.

Implemented in graph::add_node< T, SAFE_MATH >, graph::subtract_node< T, SAFE_MATH >, graph::multiply_node< T, SAFE_MATH >, graph::divide_node< T, SAFE_MATH >, graph::fma_node< T, SAFE_MATH >, graph::sqrt_node< T, SAFE_MATH >, graph::exp_node< T, SAFE_MATH >, graph::log_node< T, SAFE_MATH >, graph::pow_node< T, SAFE_MATH >, graph::erfi_node< T, SAFE_MATH >, graph::constant_node< T, SAFE_MATH >, graph::variable_node< T, SAFE_MATH >, graph::pseudo_variable_node< T, SAFE_MATH >, graph::piecewise_1D_node< T, SAFE_MATH >, graph::piecewise_2D_node< T, SAFE_MATH >, graph::random_state_node< T, SAFE_MATH >, graph::random_node< T, SAFE_MATH >, graph::sine_node< T, SAFE_MATH >, graph::cosine_node< T, SAFE_MATH >, and graph::arctan_node< T, SAFE_MATH >.

remove_pseudo()

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual std::shared_ptr< leaf_node< T, SAFE_MATH > > graph::leaf_node< T, SAFE_MATH >::remove_pseudo ( )

inlinevirtual

Remove pseudo variable nodes.

Returns

A tree without variable nodes.

Reimplemented in graph::add_node< T, SAFE_MATH >, graph::subtract_node< T, SAFE_MATH >, graph::multiply_node< T, SAFE_MATH >, graph::divide_node< T, SAFE_MATH >, graph::fma_node< T, SAFE_MATH >, graph::sqrt_node< T, SAFE_MATH >, graph::exp_node< T, SAFE_MATH >, graph::log_node< T, SAFE_MATH >, graph::pow_node< T, SAFE_MATH >, graph::erfi_node< T, SAFE_MATH >, graph::pseudo_variable_node< T, SAFE_MATH >, graph::sine_node< T, SAFE_MATH >, graph::cosine_node< T, SAFE_MATH >, and graph::arctan_node< T, SAFE_MATH >.

set() [1/4]

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual void graph::leaf_node< T, SAFE_MATH >::set ( const backend::buffer< T > &  d )

inlinevirtual

Set the value of variable data.

Parameters

[in]

d

Backend buffer data to set.

Reimplemented in graph::variable_node< T, SAFE_MATH >.

set() [2/4]

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual void graph::leaf_node< T, SAFE_MATH >::set ( const size_t  index, const T  d  )

inlinevirtual

Set the value of variable data.

Parameters

[in]	index	Buffer index to set value.
[in]	d	Scalar data to set.

Reimplemented in graph::variable_node< T, SAFE_MATH >.

set() [3/4]

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual void graph::leaf_node< T, SAFE_MATH >::set ( const std::vector< T > &  d )

inlinevirtual

Set the value of variable data.

Parameters

[in]

d

Vector data to set.

Reimplemented in graph::variable_node< T, SAFE_MATH >.

set() [4/4]

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual void graph::leaf_node< T, SAFE_MATH >::set ( const T  d )

inlinevirtual

Set the value of variable data.

Parameters

[in]

d

Scalar data to set.

Reimplemented in graph::variable_node< T, SAFE_MATH >.

to_latex()

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual void graph::leaf_node< T, SAFE_MATH >::to_latex ( ) const

pure virtual

Convert the node to latex.

Implemented in graph::add_node< T, SAFE_MATH >, graph::subtract_node< T, SAFE_MATH >, graph::multiply_node< T, SAFE_MATH >, graph::divide_node< T, SAFE_MATH >, graph::fma_node< T, SAFE_MATH >, graph::sqrt_node< T, SAFE_MATH >, graph::exp_node< T, SAFE_MATH >, graph::log_node< T, SAFE_MATH >, graph::pow_node< T, SAFE_MATH >, graph::erfi_node< T, SAFE_MATH >, graph::constant_node< T, SAFE_MATH >, graph::variable_node< T, SAFE_MATH >, graph::pseudo_variable_node< T, SAFE_MATH >, graph::piecewise_1D_node< T, SAFE_MATH >, graph::piecewise_2D_node< T, SAFE_MATH >, graph::random_state_node< T, SAFE_MATH >, graph::random_node< T, SAFE_MATH >, graph::sine_node< T, SAFE_MATH >, graph::cosine_node< T, SAFE_MATH >, and graph::arctan_node< T, SAFE_MATH >.

to_vizgraph()

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual std::shared_ptr< leaf_node< T, SAFE_MATH > > graph::leaf_node< T, SAFE_MATH >::to_vizgraph ( std::stringstream &  stream, jit::register_map &  registers  )

pure virtual

Convert the node to vizgraph.

Parameters

[in,out]	stream	String buffer stream.
[in,out]	registers	List of defined registers.

Returns

The current node.

Implemented in graph::add_node< T, SAFE_MATH >, graph::subtract_node< T, SAFE_MATH >, graph::multiply_node< T, SAFE_MATH >, graph::divide_node< T, SAFE_MATH >, graph::fma_node< T, SAFE_MATH >, graph::sqrt_node< T, SAFE_MATH >, graph::exp_node< T, SAFE_MATH >, graph::log_node< T, SAFE_MATH >, graph::pow_node< T, SAFE_MATH >, graph::erfi_node< T, SAFE_MATH >, graph::constant_node< T, SAFE_MATH >, graph::variable_node< T, SAFE_MATH >, graph::pseudo_variable_node< T, SAFE_MATH >, graph::piecewise_1D_node< T, SAFE_MATH >, graph::piecewise_2D_node< T, SAFE_MATH >, graph::random_state_node< T, SAFE_MATH >, graph::random_node< T, SAFE_MATH >, graph::sine_node< T, SAFE_MATH >, graph::cosine_node< T, SAFE_MATH >, and graph::arctan_node< T, SAFE_MATH >.

---

The documentation for this class was generated from the following file:

• graph_framework/node.hpp
