Nodes without derivatives. More...

#include <node.hpp>

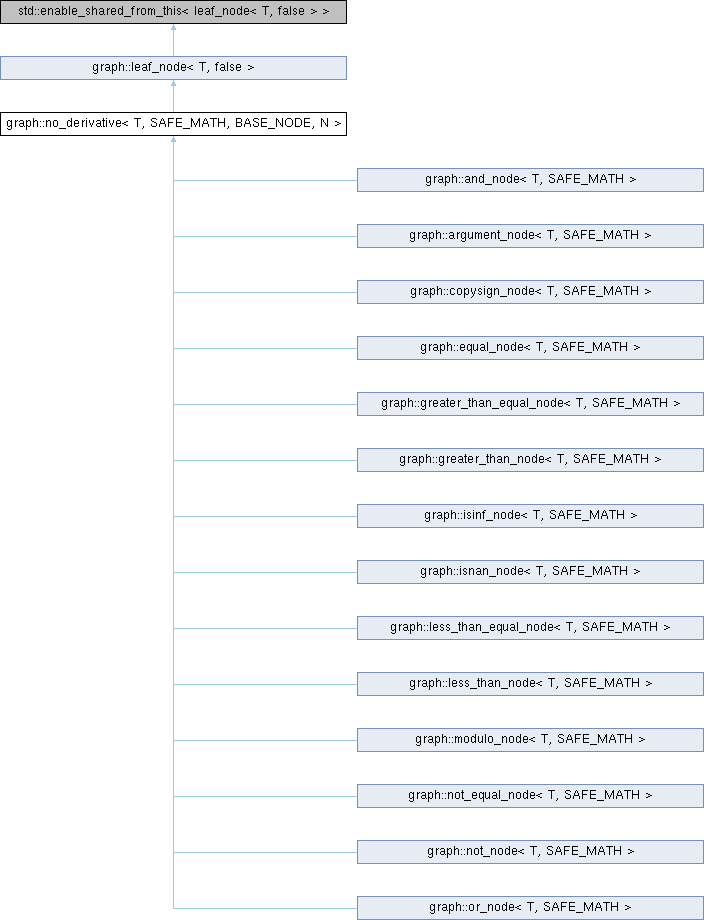

Inheritance diagram for graph::no_derivative< T, SAFE_MATH, BASE_NODE, N >:

Public Member Functions
template<typename S = bool> requires (has_no_derivative<S>::value)
std::shared_ptr< leaf_node< T, SAFE_MATH > >	df (std::shared_ptr< leaf_node< T, SAFE_MATH > > x)
	Transform node to derivative.

	no_derivative (const std::string s)
	Constructor for base leaf nodes base classes.

	no_derivative (shared_leaf< T, SAFE_MATH > arg, const std::string s)
	Constructor for straight node base classes.

	no_derivative (shared_leaf< T, SAFE_MATH > l, shared_leaf< T, SAFE_MATH > r, const std::string s)
	Constructor for base branch nodes base classes.

	no_derivative (shared_leaf< T, SAFE_MATH > l, shared_leaf< T, SAFE_MATH > m, shared_leaf< T, SAFE_MATH > r, const std::string s)
	Constructor for base triple nodes base classes.

	no_derivative (std::array< shared_leaf< T, SAFE_MATH >, N > b, const std::string s)
	Constructor for base n branch nodes base classes.

Public Member Functions inherited from graph::leaf_node< T, SAFE_MATH >
	leaf_node (const std::string s, const size_t count, const bool pseudo)
	Construct a basic node.

virtual	~leaf_node ()
	Destructor.

virtual backend::buffer< T >	evaluate ()=0
	Evaluate method.

virtual std::shared_ptr< leaf_node< T, SAFE_MATH > >	reduce ()
	Reduction method.

virtual void	compile_preamble (std::ostringstream &stream, jit::register_map &registers, jit::visiter_map &visited, jit::register_usage &usage, jit::texture1d_list &textures1d, jit::texture2d_list &textures2d, jit::preamble_map &pre_funcs, int &avail_const_mem)
	Compile preamble.

virtual std::shared_ptr< leaf_node< T, SAFE_MATH > >	compile (std::ostringstream &stream, jit::register_map &registers, const jit::register_map &thread_mem, const jit::register_usage &usage)=0
	Compile the node.

virtual bool	is_match (std::shared_ptr< leaf_node< T, SAFE_MATH > > x)
	Query if the nodes match.

bool	is_power_base_match (std::shared_ptr< leaf_node< T, SAFE_MATH > > x)
	Check if the base of the powers match.

virtual void	set (const T d)
	Set the value of variable data.

virtual void	set (const size_t index, const T d)
	Set the value of variable data.

virtual void	set (const std::vector< T > &d)
	Set the value of variable data.

virtual void	set (const backend::buffer< T > &d)
	Set the value of variable data.

virtual void	to_latex () const
	Convert the node to latex.

virtual std::shared_ptr< leaf_node< T, SAFE_MATH > >	to_vizgraph (std::stringstream &stream, jit::register_map &registers)=0
	Convert the node to vizgraph.

virtual bool	is_constant () const
	Test if node is a constant.

virtual bool	has_constant_zero () const
	Test the constant node has a zero.

bool	is_normal ()
	Test if the result is normal.

virtual bool	is_all_variables () const
	Test if all the sub-nodes terminate in variables.

virtual bool	is_power_like () const
	Test if the node acts like a power of variable.

virtual std::shared_ptr< leaf_node< T, SAFE_MATH > >	get_power_base ()
	Get the base of a power.

virtual std::shared_ptr< leaf_node< T, SAFE_MATH > >	get_power_exponent () const =0
	Get the exponent of a power.

size_t	get_hash () const
	Get the hash for the node.

size_t	get_complexity () const
	Get the number of nodes in the subgraph.

virtual bool	has_pseudo () const
	Query if the node contains pseudo variables.

virtual std::shared_ptr< leaf_node< T, SAFE_MATH > >	remove_pseudo ()
	Remove pseudo variable nodes.

virtual void	endline (std::ostringstream &stream, const jit::register_usage &usage, const char end=';') const
	End a line in the kernel source.

Additional Inherited Members
Public Types inherited from graph::leaf_node< T, SAFE_MATH >
typedef T	base
	Type def to retrieve the backend type.

Static Public Attributes inherited from graph::leaf_node< T, SAFE_MATH >
static thread_local caches_t	caches
	A per thread instance of the cache structure.

Protected Attributes inherited from graph::leaf_node< T, SAFE_MATH >
const size_t	hash
	Hash for node.

const size_t	complexity
	Graph complexity.

std::unordered_map< size_t, std::shared_ptr< leaf_node< T, SAFE_MATH > > >	df_cache
	Cache derivative terms.

const bool	contains_pseudo
	Node contains pseudo variables.

Detailed Description

template<jit::float_scalar T, bool SAFE_MATH = false, class BASE_NODE = leaf_node<T, SAFE_MATH>, size_t N = 1>
class graph::no_derivative< T, SAFE_MATH, BASE_NODE, N >

Nodes without derivatives.

Some functions have no derivative. This can be used as a base class to case a compile error if a derivative node is attempted.

Template Parameters

T	Base type of the calculation.
SAFE_MATH	Use Safe Math operations.
BASE_NODE	Base code to subclass from.
N	Number of sub-nodes.

Constructor & Destructor Documentation

◆ no_derivative() [1/5]

template<jit::float_scalar T, bool SAFE_MATH = false, class BASE_NODE = leaf_node<T, SAFE_MATH>, size_t N = 1>

graph::no_derivative< T, SAFE_MATH, BASE_NODE, N >::no_derivative ( const std::string s )

inline

Constructor for base leaf nodes base classes.

Parameters

[in] s Node string to hash.

◆ no_derivative() [2/5]

template<jit::float_scalar T, bool SAFE_MATH = false, class BASE_NODE = leaf_node<T, SAFE_MATH>, size_t N = 1>

graph::no_derivative< T, SAFE_MATH, BASE_NODE, N >::no_derivative	(	shared_leaf< T, SAFE_MATH >	arg,
		const std::string	s
	)

inline

Constructor for straight node base classes.

Parameters

[in]	arg	Node argument.
[in]	s	Node string to hash.

◆ no_derivative() [3/5]

template<jit::float_scalar T, bool SAFE_MATH = false, class BASE_NODE = leaf_node<T, SAFE_MATH>, size_t N = 1>

graph::no_derivative< T, SAFE_MATH, BASE_NODE, N >::no_derivative	(	shared_leaf< T, SAFE_MATH >	l,
		shared_leaf< T, SAFE_MATH >	r,
		const std::string	s
	)

inline

Constructor for base branch nodes base classes.

Parameters

[in]	l	Left branch.
[in]	r	Right branch.
[in]	s	Node string to hash.

◆ no_derivative() [4/5]

template<jit::float_scalar T, bool SAFE_MATH = false, class BASE_NODE = leaf_node<T, SAFE_MATH>, size_t N = 1>

graph::no_derivative< T, SAFE_MATH, BASE_NODE, N >::no_derivative	(	shared_leaf< T, SAFE_MATH >	l,
		shared_leaf< T, SAFE_MATH >	m,
		shared_leaf< T, SAFE_MATH >	r,
		const std::string	s
	)

inline

Constructor for base triple nodes base classes.

Parameters

[in]	l	Left branch.
[in]	m	Middle branch.
[in]	r	Right branch.
[in]	s	Node string to hash.

◆ no_derivative() [5/5]

template<jit::float_scalar T, bool SAFE_MATH = false, class BASE_NODE = leaf_node<T, SAFE_MATH>, size_t N = 1>

graph::no_derivative< T, SAFE_MATH, BASE_NODE, N >::no_derivative	(	std::array< shared_leaf< T, SAFE_MATH >, N >	b,
		const std::string	s
	)

inline

Constructor for base n branch nodes base classes.

Parameters

[in]	b	Array of branches.
[in]	s	Node string to hash.

Member Function Documentation

◆ df()

template<jit::float_scalar T, bool SAFE_MATH = false, class BASE_NODE = leaf_node<T, SAFE_MATH>, size_t N = 1>

template<typename S = bool>
requires (has_no_derivative<S>::value)

std::shared_ptr< leaf_node< T, SAFE_MATH > > graph::no_derivative< T, SAFE_MATH, BASE_NODE, N >::df ( std::shared_ptr< leaf_node< T, SAFE_MATH > > x )

virtual

Transform node to derivative.

Parameters

[in] x The variable to take the derivative to.

Returns: The derivative of the node.

Reimplemented from graph::leaf_node< T, SAFE_MATH >.

The documentation for this class was generated from the following file:

graph_framework/node.hpp
