Node class to contain the index argument. More...

#include <piecewise.hpp>

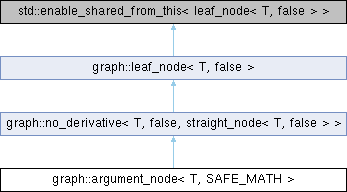

Inheritance diagram for graph::argument_node< T, SAFE_MATH >:

Public Member Functions
	argument_node (shared_leaf< T, SAFE_MATH > x, const T scale, const T offset, const size_t length)
	Construct an Argument node.

virtual backend::buffer< T >	evaluate ()
	Evaluate the argument.

virtual shared_leaf< T, SAFE_MATH >	reduce ()
	Reduction method.

virtual shared_leaf< T, SAFE_MATH >	compile (std::ostringstream &stream, jit::register_map &registers, const jit::register_map &thread_mem, const jit::register_usage &usage)
	Compile the node.

virtual bool	is_match (shared_leaf< T, SAFE_MATH > x)
	Query if the nodes match.

T	get_scale () const
	Get argument scale.

T	get_offset () const
	Get argument offset.

size_t	get_size () const
	Get the size of the array.

virtual shared_leaf< T, SAFE_MATH >	to_vizgraph (std::stringstream &stream, jit::register_map &registers)
	Convert the node to vizgraph.

Public Member Functions inherited from graph::no_derivative< T, SAFE_MATH, BASE_NODE, N >
template<typename S = bool> requires (has_no_derivative<S>::value)
std::shared_ptr< leaf_node< T, SAFE_MATH > >	df (std::shared_ptr< leaf_node< T, SAFE_MATH > > x)
	Transform node to derivative.

	no_derivative (const std::string s)
	Constructor for base leaf nodes base classes.

	no_derivative (shared_leaf< T, SAFE_MATH > arg, const std::string s)
	Constructor for straight node base classes.

	no_derivative (shared_leaf< T, SAFE_MATH > l, shared_leaf< T, SAFE_MATH > r, const std::string s)
	Constructor for base branch nodes base classes.

	no_derivative (shared_leaf< T, SAFE_MATH > l, shared_leaf< T, SAFE_MATH > m, shared_leaf< T, SAFE_MATH > r, const std::string s)
	Constructor for base triple nodes base classes.

	no_derivative (std::array< shared_leaf< T, SAFE_MATH >, N > b, const std::string s)
	Constructor for base n branch nodes base classes.

Public Member Functions inherited from graph::leaf_node< T, SAFE_MATH >
	leaf_node (const std::string s, const size_t count, const bool pseudo)
	Construct a basic node.

virtual	~leaf_node ()
	Destructor.

virtual void	compile_preamble (std::ostringstream &stream, jit::register_map &registers, jit::visiter_map &visited, jit::register_usage &usage, jit::texture1d_list &textures1d, jit::texture2d_list &textures2d, jit::preamble_map &pre_funcs, int &avail_const_mem)
	Compile preamble.

virtual bool	is_match (std::shared_ptr< leaf_node< T, SAFE_MATH > > x)
	Query if the nodes match.

bool	is_power_base_match (std::shared_ptr< leaf_node< T, SAFE_MATH > > x)
	Check if the base of the powers match.

virtual void	set (const T d)
	Set the value of variable data.

virtual void	set (const size_t index, const T d)
	Set the value of variable data.

virtual void	set (const std::vector< T > &d)
	Set the value of variable data.

virtual void	set (const backend::buffer< T > &d)
	Set the value of variable data.

virtual void	to_latex () const
	Convert the node to latex.

virtual bool	is_constant () const
	Test if node is a constant.

virtual bool	has_constant_zero () const
	Test the constant node has a zero.

bool	is_normal ()
	Test if the result is normal.

virtual bool	is_all_variables () const
	Test if all the sub-nodes terminate in variables.

virtual bool	is_power_like () const
	Test if the node acts like a power of variable.

virtual std::shared_ptr< leaf_node< T, SAFE_MATH > >	get_power_base ()
	Get the base of a power.

virtual std::shared_ptr< leaf_node< T, SAFE_MATH > >	get_power_exponent () const =0
	Get the exponent of a power.

size_t	get_hash () const
	Get the hash for the node.

size_t	get_complexity () const
	Get the number of nodes in the subgraph.

virtual bool	has_pseudo () const
	Query if the node contains pseudo variables.

virtual std::shared_ptr< leaf_node< T, SAFE_MATH > >	remove_pseudo ()
	Remove pseudo variable nodes.

virtual void	endline (std::ostringstream &stream, const jit::register_usage &usage, const char end=';') const
	End a line in the kernel source.

Additional Inherited Members
Public Types inherited from graph::leaf_node< T, SAFE_MATH >
typedef T	base
	Type def to retrieve the backend type.

Static Public Attributes inherited from graph::leaf_node< T, SAFE_MATH >
static thread_local caches_t	caches
	A per thread instance of the cache structure.

Protected Attributes inherited from graph::leaf_node< T, SAFE_MATH >
const size_t	hash
	Hash for node.

const size_t	complexity
	Graph complexity.

std::unordered_map< size_t, std::shared_ptr< leaf_node< T, SAFE_MATH > > >	df_cache
	Cache derivative terms.

const bool	contains_pseudo
	Node contains pseudo variables.

Detailed Description

template<jit::float_scalar T, bool SAFE_MATH = false>
class graph::argument_node< T, SAFE_MATH >

Node class to contain the index argument.

Template Parameters

T	Base type of the calculation.
SAFE_MATH	Use Safe Math operations.

Constructor & Destructor Documentation

◆ argument_node()

template<jit::float_scalar T, bool SAFE_MATH = false>

graph::argument_node< T, SAFE_MATH >::argument_node	(	shared_leaf< T, SAFE_MATH >	x,
		const T	scale,
		const T	offset,
		const size_t	length
	)

inline

Construct an Argument node.

Parameters

[in]	x	Argument.
[in]	scale	Scale factor for the argument.
[in]	offset	Offset factor for the argument.
[in]	length	Length of the array to index.

Member Function Documentation

◆ compile()

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual shared_leaf< T, SAFE_MATH > graph::argument_node< T, SAFE_MATH >::compile	(	std::ostringstream &	stream,
		jit::register_map &	registers,
		const jit::register_map &	thread_mem,
		const jit::register_usage &	usage
	)

inlinevirtual

Compile the node.

x' = (x - xmin)/dx (1)

Parameters

[in,out]	stream	String buffer stream.
[in,out]	registers	List of defined registers.
[in]	thread_mem	List of defined thread memory registers.
[in]	usage	List of register usage count.

Returns: The current node.

Implements graph::leaf_node< T, SAFE_MATH >.

◆ evaluate()

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual backend::buffer< T > graph::argument_node< T, SAFE_MATH >::evaluate ( )

inlinevirtual

Evaluate the argument.

Evaluate functions are only used by the minimization. So this node does not evaluate the argument. Instead this only returns the data as if it were a constant.

Returns: The evaluated value of the node.

Implements graph::leaf_node< T, SAFE_MATH >.

◆ get_offset()

template<jit::float_scalar T, bool SAFE_MATH = false>

T graph::argument_node< T, SAFE_MATH >::get_offset ( ) const

inline

Get argument offset.

Returns: The offset factor for x.

◆ get_scale()

template<jit::float_scalar T, bool SAFE_MATH = false>

T graph::argument_node< T, SAFE_MATH >::get_scale ( ) const

inline

Get argument scale.

Returns: The scale factor for x.

◆ get_size()

template<jit::float_scalar T, bool SAFE_MATH = false>

size_t graph::argument_node< T, SAFE_MATH >::get_size ( ) const

inline

Get the size of the array.

Returns: The size of the array.

◆ is_match()

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual bool graph::argument_node< T, SAFE_MATH >::is_match ( shared_leaf< T, SAFE_MATH > x )

inlinevirtual

Query if the nodes match.

The argument of this node can be deferred so we need to check if the arguments are null.

Parameters

[in] x Other graph to check if it is a match.

Returns: True if the nodes are a match.

◆ reduce()

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual shared_leaf< T, SAFE_MATH > graph::argument_node< T, SAFE_MATH >::reduce ( )

inlinevirtual

Reduction method.

If all the values in the data buffer are the same. Reduce to a single constant.

Returns: A reduced representation of the node.

Reimplemented from graph::leaf_node< T, SAFE_MATH >.

◆ to_vizgraph()

template<jit::float_scalar T, bool SAFE_MATH = false>

virtual shared_leaf< T, SAFE_MATH > graph::argument_node< T, SAFE_MATH >::to_vizgraph	(	std::stringstream &	stream,
		jit::register_map &	registers
	)

inlinevirtual

Convert the node to vizgraph.

Parameters

[in,out]	stream	String buffer stream.
[in,out]	registers	List of defined registers.

Returns: The current node.

Implements graph::leaf_node< T, SAFE_MATH >.

The documentation for this class was generated from the following file:

graph_framework/piecewise.hpp
